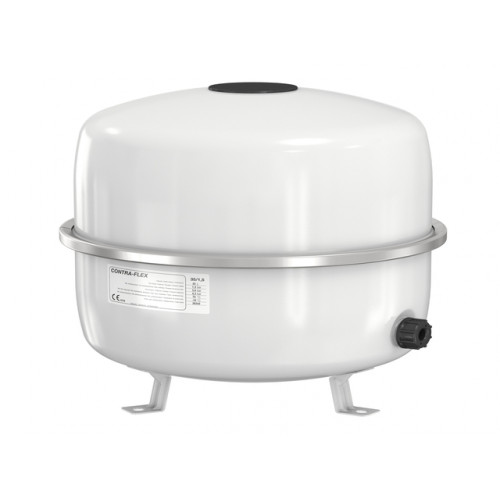

Vas de expansiune - Flamco Contraflex White

Maximum working pressure: 3.0 or 6.0 bar. Vessels in accordance with EN13831. Suitable for systems with a maximum flow temperature of 120 °C. Maximum temperature diaphragm: 70 °C. Suitable for addition of glycol-based anti-freeze up to 50%. Deep drawn steel vessel halves with zinc plated steel clench ring. In accordance with Pressure Equipment Directive 2014/68/EU. Red (RAL 3002) or white (RAL 9010) epoxy powder coating.(Contra-Flex white: Not available on stock in the U.K.) Contra-Flex 50 - 150: With feet.

Preturi de la

0,00 RON

Pretul include TVA

*Capacitate

* campuri obligatorii

Preturi de la

0,00 RON

Pretul include TVA

Cant:

Detalii

Description : Contraflex exp.ves. 50/1,5 [6bar] white

Order Code : 26483

GTIN : 08712874264830

Model: Contra-Flex 2 - 80

Capacity [l] : 50

Pre- charge [bar] : 1.5

Max. working pressure [bar] : 6.0

Dimensions A [mm] : 437

B [mm] : 493

Ø C [mm] : 263

D [mm] : 134

Syst. conn. (E) : R 3⁄4"

Weight [kg] : 11.4

Description : Contraflex exp.ves. 100/1,5 [6bar] white

Order Code : 26103

GTIN : 08712874261037

Model: Contra-Flex 100 - 1000

Capacity [l] : 100

Pre- charge [bar] : 1.5

Max. working pressure [bar] : 6.0

Dimensions A [mm] : 484

B [mm] : 774

Ø C [mm] : 360

Syst. conn. (E) : R 1"

Weight [kg] : 19

Description : Contraflex exp.ves. 150/1,5 [6bar] white

Order Code : 16153

GTIN : 08712874161535

Model: Contra-Flex 100 - 1000

Capacity [l] : 150

Pre- charge [bar] : 1.5

Max. working pressure [bar] : 6.0

Dimensions A [mm] : 484

B [mm] : 1014

Ø C [mm] : 360

Syst. conn. (E) : R 1"

Weight [kg] : 23.6

Detalii Tehnice
